M-2 Guide ring

Introduction

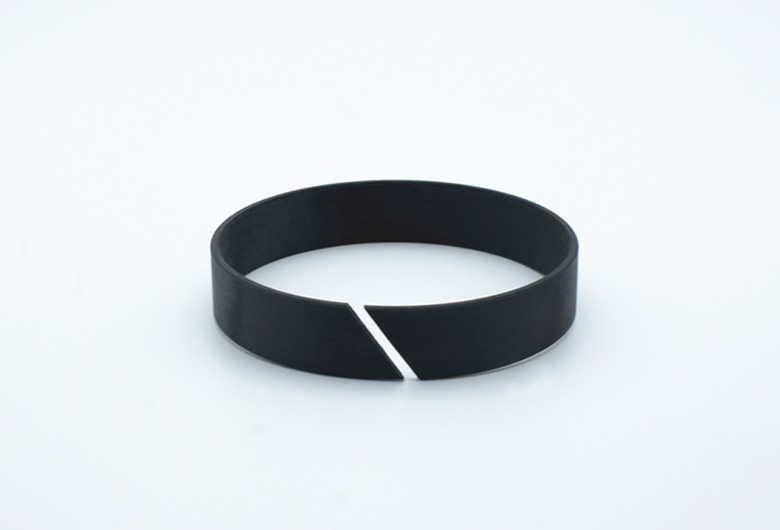

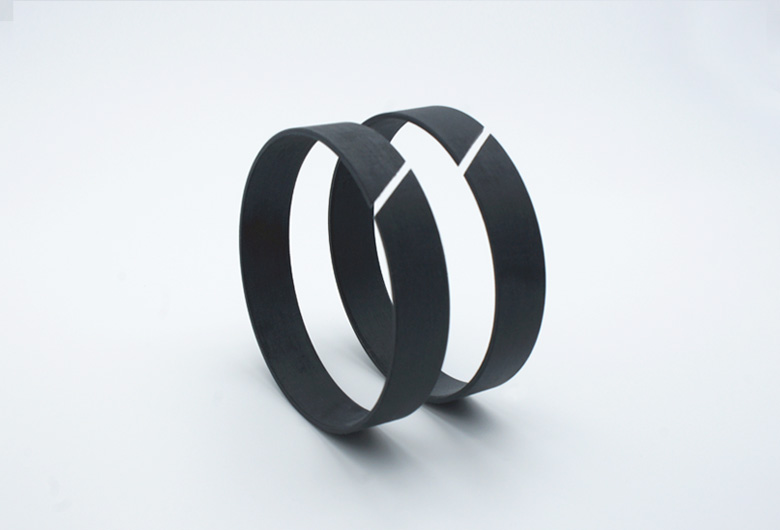

M-2 Guide ring is made from cotton fabric and phenolic resin, with graphite particles lubricant. It is also called phenolic wear ring, or graphite wear ring.

M-2 Guide ring can bear high surface pressure, often used as piston guide ring, it’s function is to guide the piston and piston rod, absorb transverse forces, prevent metal-to-metal contact, and optimize the performance of the sealing system, plays a very important role in hydraulic and pneumatic sealing system.

Material Benefits

Good wear resistance
Good dimension stability
Extended service life
Self-lubricating by graphite
Low maintenance cost
Wide range of dimensions

Technical properties

Polymer Material	Color	Density g/cm³	Compressive strength Mpa	Hardness Rockwell M	Water Absorption	Sliding speed [m/s]	Temperature
Phenolic resin+ Cotton fabric+ Graphite particles	Black	1.32	280	103	＜0.1%	1.0	-40℃ to 130℃

Typical Applications

M-2 guide ring was developed to standard cylinders, mobile hydraulics, agricultural machinery cylinders, construction machinery cylinders, crane cylinders, injection moulding machines cylinders, presses, shipping and marine engineering etc.
