M-3 Guide ring

Introduction

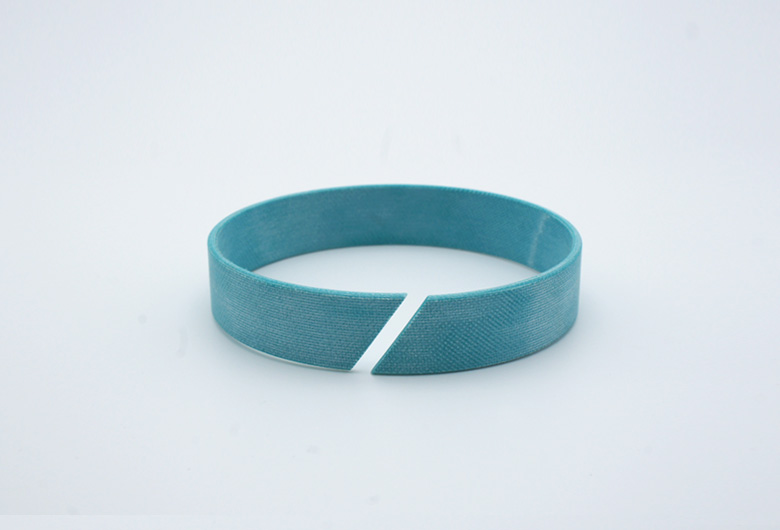

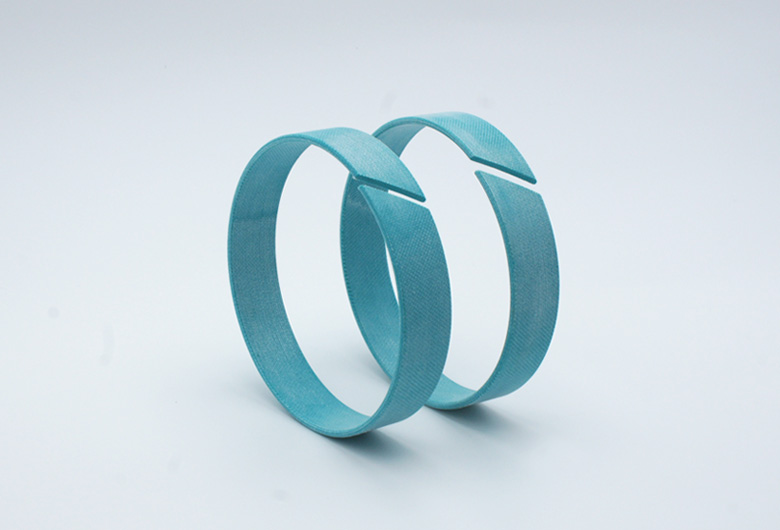

M-3 Guide ring is made from polyester fabric and polyester resin, with PTFE particles lubricant. It is also called polyester wear ring, or polyester guide ring.

M-3 Guide ring can bear high surface pressure, can be used as piston guide ring and rod guide ring, it’s function is to guide the piston and piston rod, absorb transverse forces, prevent metal-to-metal contact, and optimize the performance of the sealing system, plays a very important role in hydraulic and pneumatic sealing system.

Material Benefits

Very low humidity absorption
Improved Sliding behavior
Good Chemical resistance
High load bearing capacity
Improved self-lubricating property
High flexibility, easy installation

Technical properties

Polymer Material	Color	Density g/cm³	Compressive strength Mpa	Hardness Rockwell M	Water Absorption	Sliding speed [m/s]	Temperature
Polyester resin+Polyester fabric+PTFE particles	Turquoise	1.26	345	100	＜0.1%	1.0	-40℃ to 130℃

Typical Applications

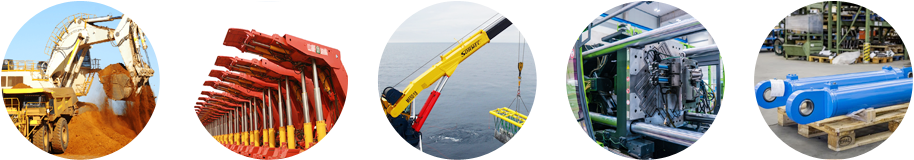

M-3 Guide ring was developed to heavy duty cylinders, construction machinery cylinders, marine hydraulics, mining hydraulic support cylinders, presses and mobile hydraulics, etc.
