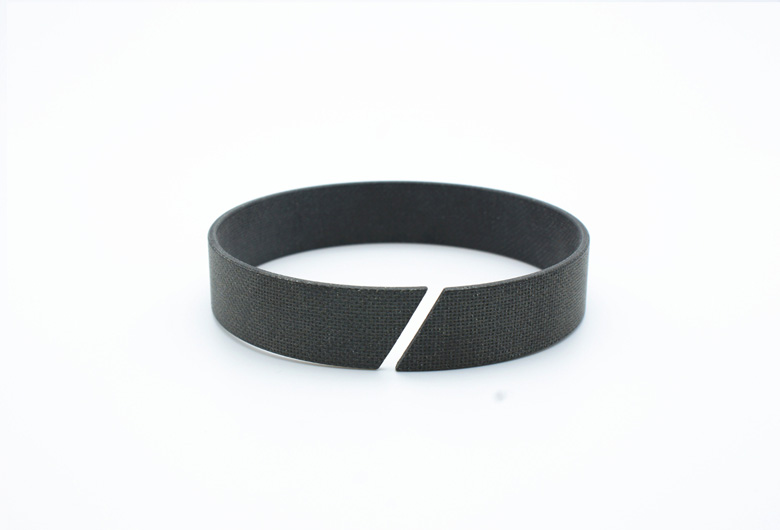

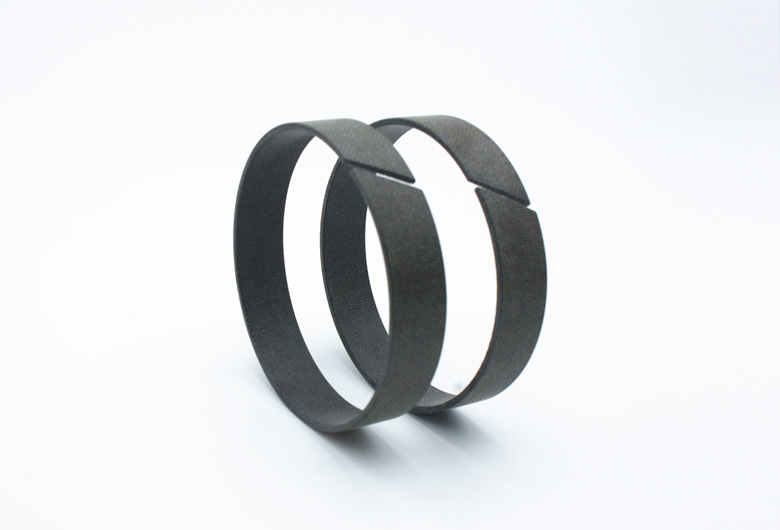

M-6 Guide ring

Introduction

M-6 Guide ring is made from aramid fabric and phenolic resin, with MoS2 particles lubricant. It is also called aramid wear ring and aramid guide ring.

M-6 Guide ring is for heavy duty hydraulics, often used as piston guide ring, it's function is to guide the piston and piston rod, absorb transverse forces, prevent metal-to-metal contact, and optimize the performance of the sealing system, plays a very important role in hydraulic and pneumatic sealing system.

Material Benefits

Excellent wear resistance
Excellent capability to bear high impact
Stable in temperature condition (200℃)
Damping of vibration
High load-bearing capability
High flexibility, easy installation

Technical properties

Polymer Material	Color	Density g/cm³	Compressive strength Mpa	Hardness Rockwell M	Water Absorption	Sliding speed [m/s]	Temperature
Phenolic resin +Aramid fabric+ MoS2 particles	Black	1.35	365	103	＜0.1%	1.0	-40℃ to 200℃

Typical Applications

M-6 Guider ring was developed to heavy duty cylinders, construction machinery, especially above 20 tons excavator cylinders, and other heavy-duty applications, Iron and steel industry cylinders, marine hydraulics, etc.
