M-4 Guide ring

Introduction

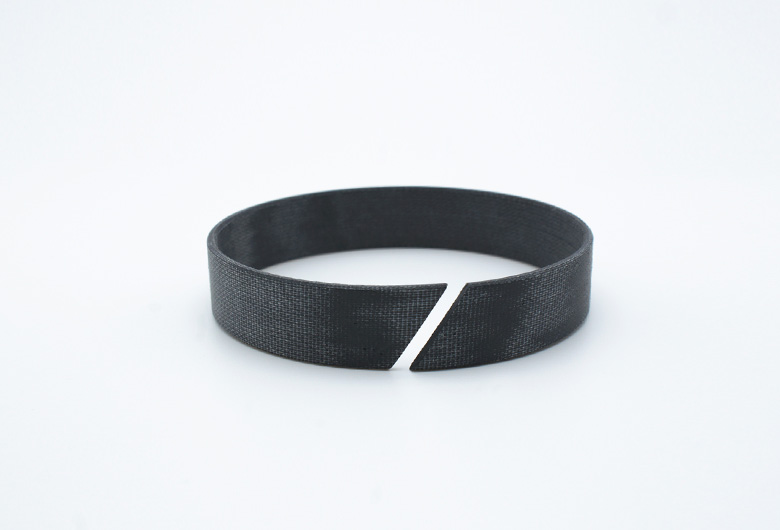

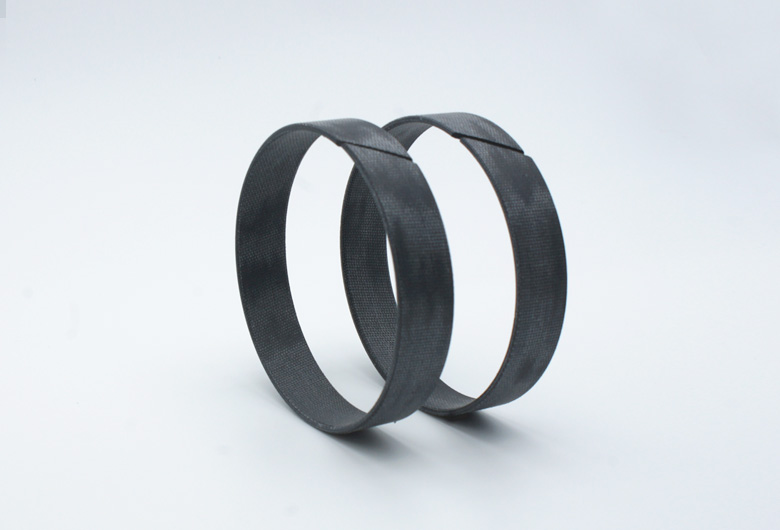

M-4 Guide ring is made from polyester fabric and phenolic resin, with MoS2 particles lubricant. It is also called polyester wear ring, or polyester guide ring.

M-4 Guide ring can be used in the gas spring applications, it's function is to guide the piston and piston rod, absorb transverse forces, prevent metal-to-metal contact, and optimize the performance of the sealing system, plays a very important role in hydraulic and pneumatic sealing system.

Material Benefits

Good Chemical resistance
Excellent wear resistance
High load bearing capacity
Improved self-lubricating property
High flexibility, easy installation
Economical marine bearing solution

Technical properties

Polymer Material	Color	Density g/cm³	Compressive strength Mpa	Hardness Rockwell M	Water Absorption	Sliding speed [m/s]	Temperature
Phenolic resin+Polyester fabric+ MoS2 particles	Black	1.26	345	100	＜0.1%	1.0	-40℃ to 130℃

Typical Applications

M-4 Guide ring was developed to standard cylinders, water hydraulics, mobile hydraulics, agricultural machinery cylinders, construction machinery cylinders, crane cylinders, injection moulding machines cylinders, pneumatic cylinders, shipping and marine engineering, etc.
